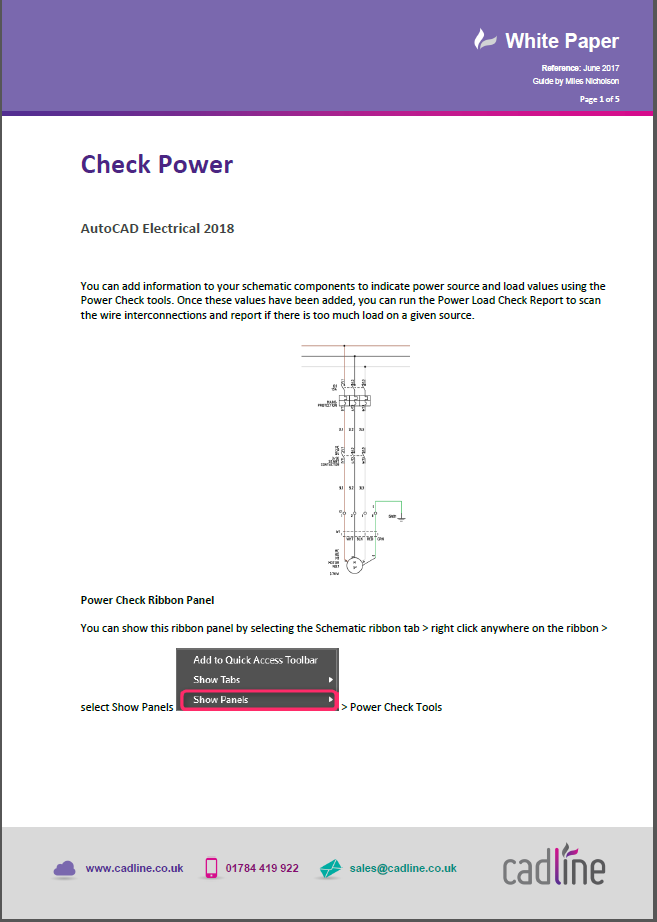

AutoCAD Electrical 2018: Power Check

By Miles Nicholson

You can add information to your schematic components to indicate power source and load values using the Power Check tools. Once these values have been added, you can run the Power Load Check Report to scan the wire interconnections and report if there is too much load on a given source.
