elecworks - Wire Colour and Size Marking

By Miles Nicholson

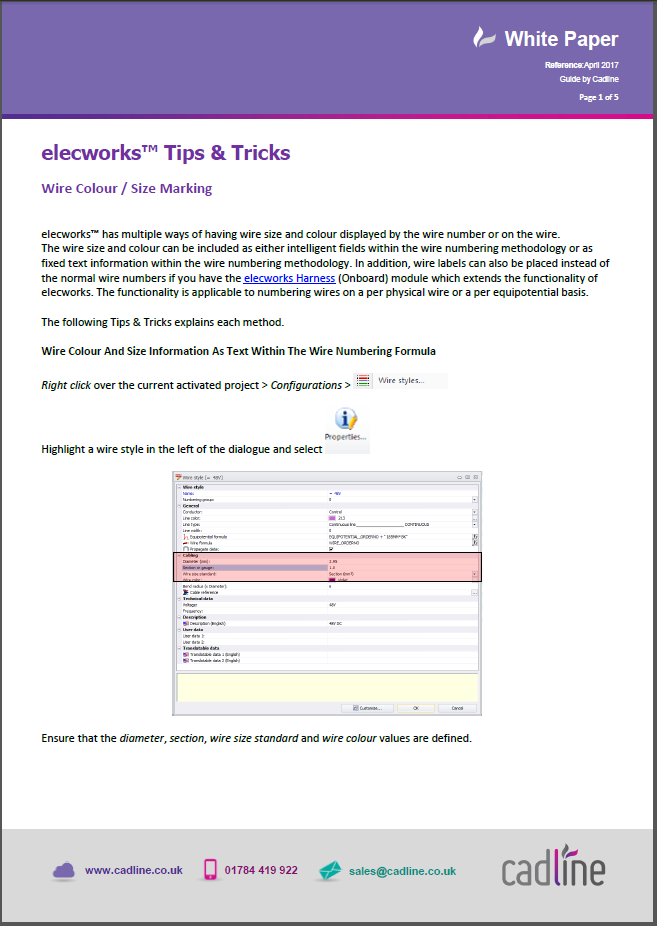

elecworks™ has multiple ways of having wire size and colour displayed by the wire number or on the wire.

The wire size and colour can be included as either intelligent fields within the wire numbering methodology or as fixed text information within the wire numbering methodology. In addition, wire labels can also be placed instead of the normal wire numbers if you have the elecworks Harness (Onboard) module which extends the functionality of elecworks. The functionality is applicable to numbering wires on a per physical wire or a per equipotential basis.
