Creating Revit UK Compliant M&E Design

Cylink : Cymap – Revit 3D plant generator

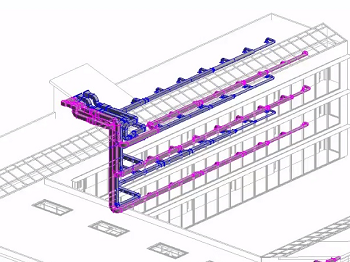

Cylink is a Revit MEP add-on application that enhances the export of 2D semi co-ordinated mechanical services into fully 3D co-ordinated layouts by importing the Mechanical services layouts into the Linked Revit MEP model.

This allows the engineer/coordinator to examine how the services fit within the building model with respect to structural elements and other services. Change requirements can then be easily identified visually or by Navisworks.

Cyspace: HVAC Plant space allowance designer

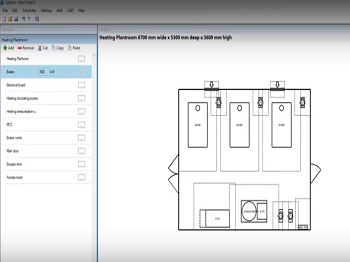

Cyspace software is used for the early design of plant rooms and risers in buildings. The software selects and sizes plant equipment and creates layouts which can then be output to schedules and CAD formats including SketchUp and Autodesk Revit.

SPECIAL OFFER

Until the end of May 2018 we are offering a BIM on-site training day for free (normally £950) when Cyspace and Cylink are ordered as a bundle.

Cylink multi user Cymap = £1500pa
Cyspace = £1500pa
Cylink on site 1-day BIM level 2 workflow training = £950 (free of charge if ordered as a bundle until the end of May 2018.)

Call us today on 0330 551 9420 or visit arkance.world

*Terms and conditions apply - copy available on request
