Quick Tip – Adding on-screen realism to models

By Nick Harris

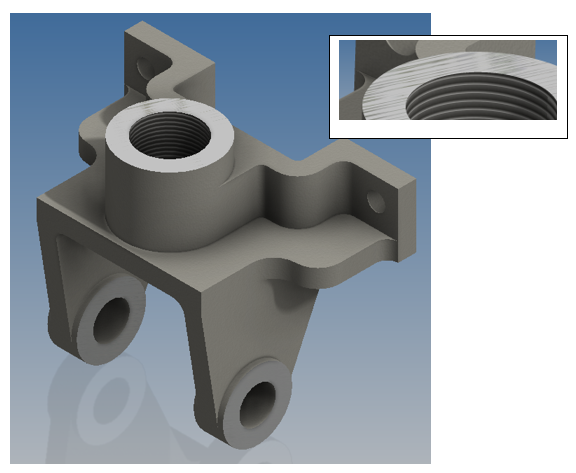

As an alternative to creating a fully rendered image from either the Inventor Studio tools or an external application such as 3ds Max, here are a few tips in creating a little more realism to your on-screen model.  This example image depicts a cast component with machined finished faces.

General setup tips:

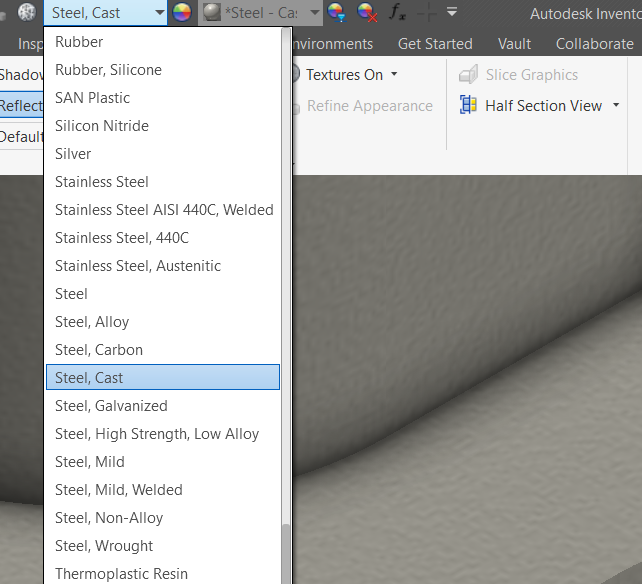

• Set a suitable base material for the model.

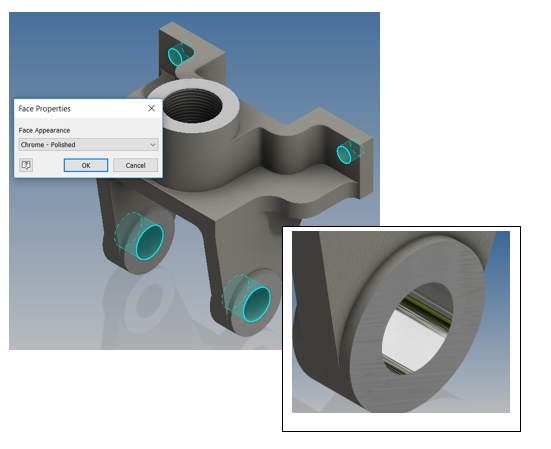

• Secondly, select individual faces (use Cntrl-pick for multiples), then right click to change appearances of the face properties.

• Set required shadows and reflections.

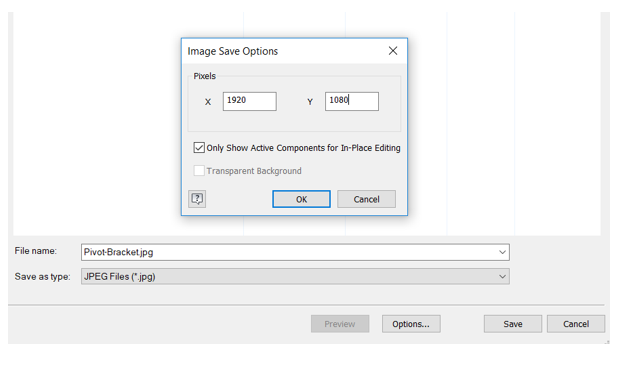

• If you wish to export an image format file (jpg, png etc.) select the required file format via `Save Copy As’ and select resolution settings via the Option button.
