MEPworx Wiring – RCBO or AFDD-RCBO Internal RDC Trip detail

Marketing
Marketing
  • Updated

By David Wren

Where the selected CPD Type has an Internal RCD Earth Trip unit, e.g. RCBO or AFDD-RCBO, the Type of RCD Trip unit, AC, A, F or B, is now confirmed in the Detailed CPD Entry dialog, as illustrated below.

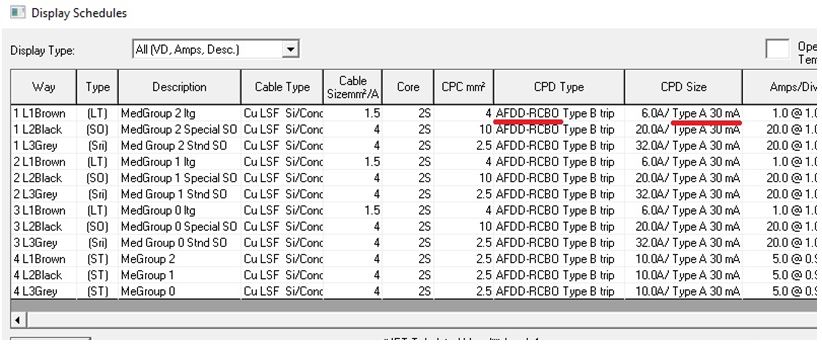

This is in addition to details of the RCD Type being included in the CPD Size column of the Final Circuit - Schedules.


Please refer to the Wiring Program's Help (F1) for more information.
