MEPworx – Create 'Arrays' of Public Health appliances

By David Wren

New for MEPworx 2024, is the added facility to insert an Array of Public Health - Standard Draw Off units.

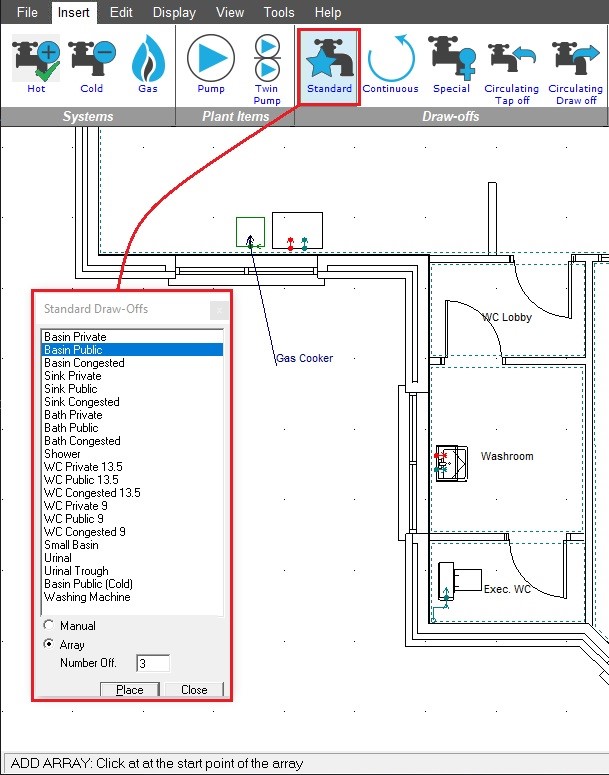

After the device has been chosen from the list, select Array entering the number of devices, then click on Place.

Next, as per the instructions at the bottom of the screen.

• Click the mouse once at the Start of the Array.
• Move the cursor in the desired direction.
• Click the mouse again to set the End of the Array.

This process applies to both orthogonal and non-orthogonal positioning for any chosen direction.
After the array has been added, individual components can be re-positioned if so desired.

If the Manual option is selected, you can place individual Draw Off items, in any position, with each single click of the mouse.

This new function will assist with the equidistant alignment of added appliances for quality presentations.

Please refer to the context appropriate in-program Help (F1) for more information.
