Address & Street Management – Numbered Streets (Delete Parts)

By David Crowther

In this ‘How To’ tutorial, we will learn how to Manage Numbered Streets in the DynamicMaps Address & Street Management Application.

When editing the geometry of a Named Street that is associated to a Numbered Street you must consider how changing the geometry of the Named Street will affect the associated Numbered Street.

Delete Parts from a Street Record and manage associated Numbered Street

If we Delete a Part of Named Street geometry that is associated to a Numbered Street record we need to manage that relationship to. For example, here is the current Named Street geometry for Charlesfield.

Using the Drawing Tools, we will Delete a Part from the Street.

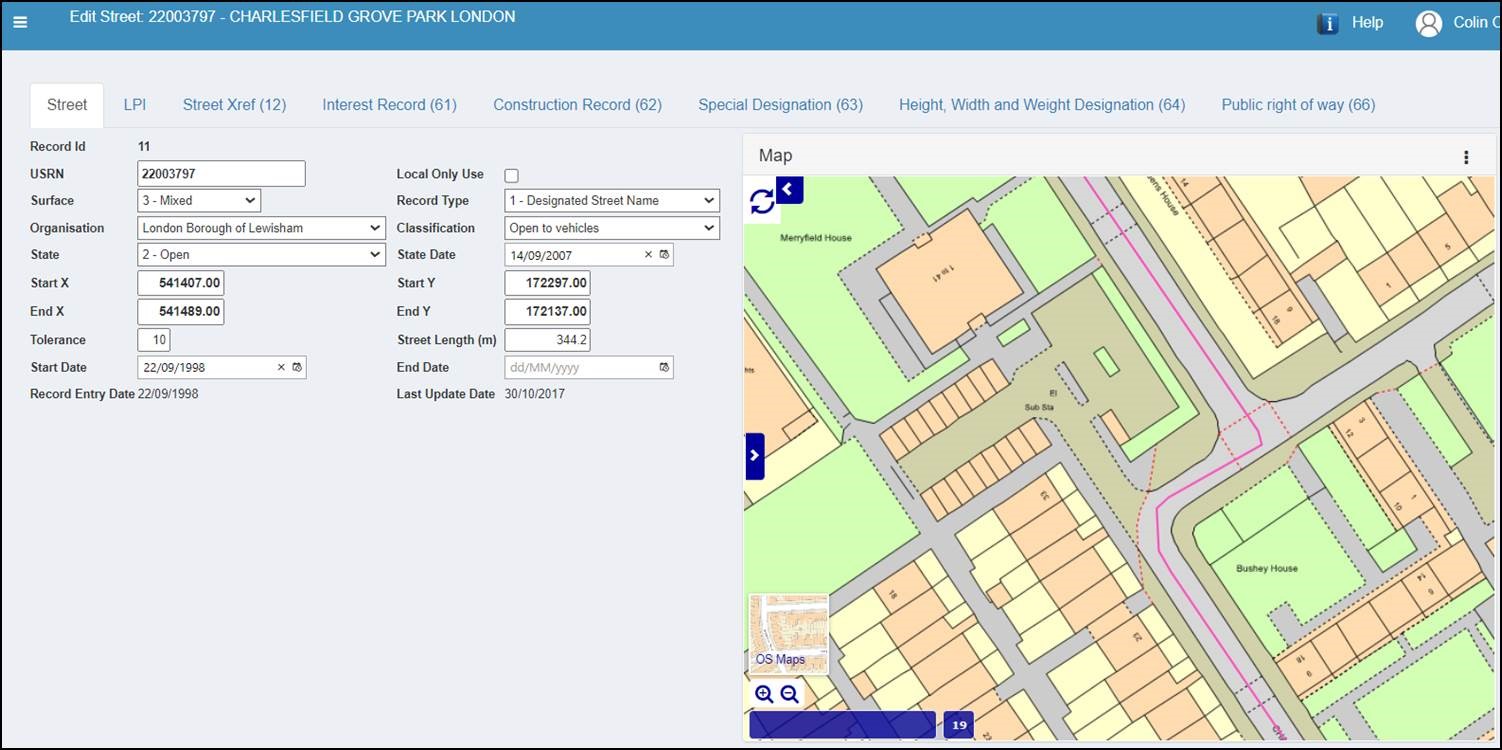

Once the Part is deleted and the map is saved, the length of the Named Street updates to remove the Part that was deleted, here from 399.97 to 344.2.

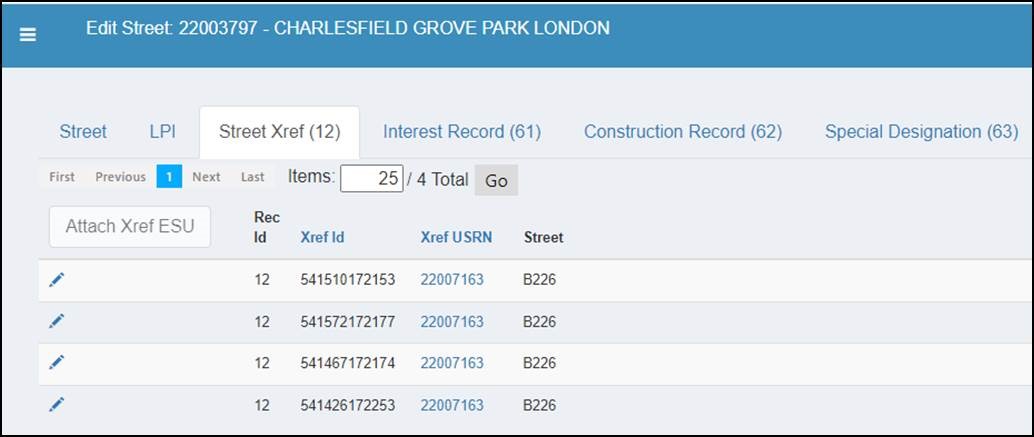

If we view the Street Xref tab, we can see that the associated ESUID has now been deleted from the list of records.

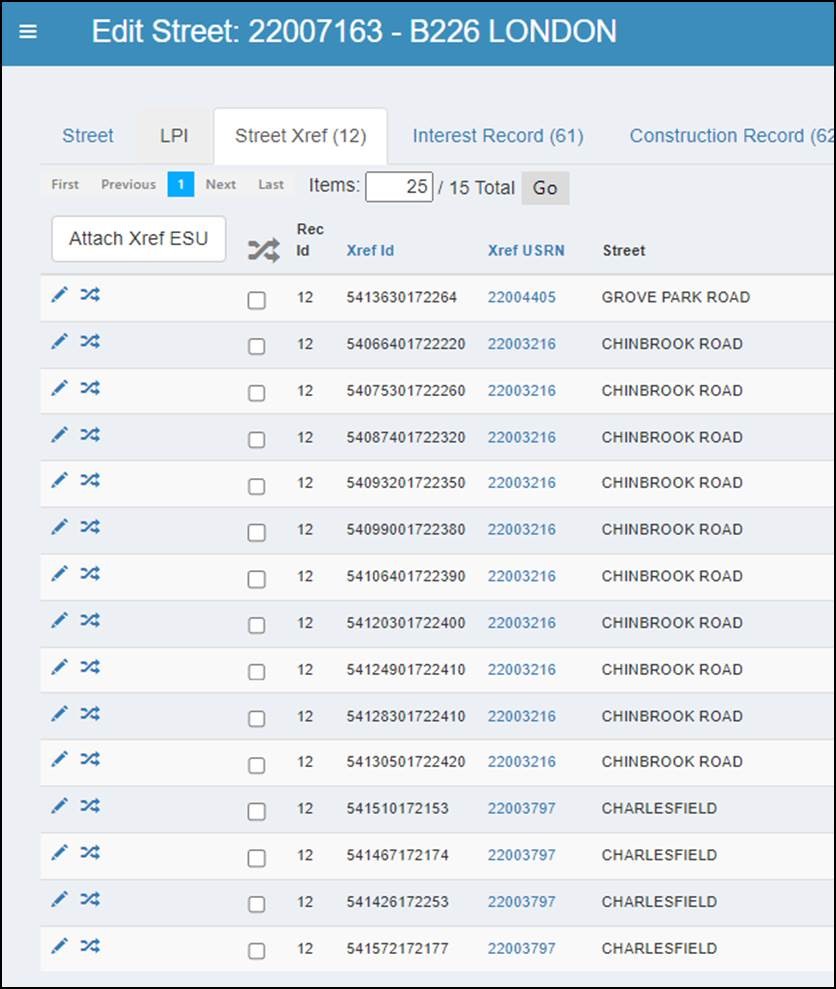

And if we then view the Numbered Street record and check the Street Xref tab we can see it has been updated to remove the deleted ESU from the associated Named Street, and the count of ESUs is now 15.

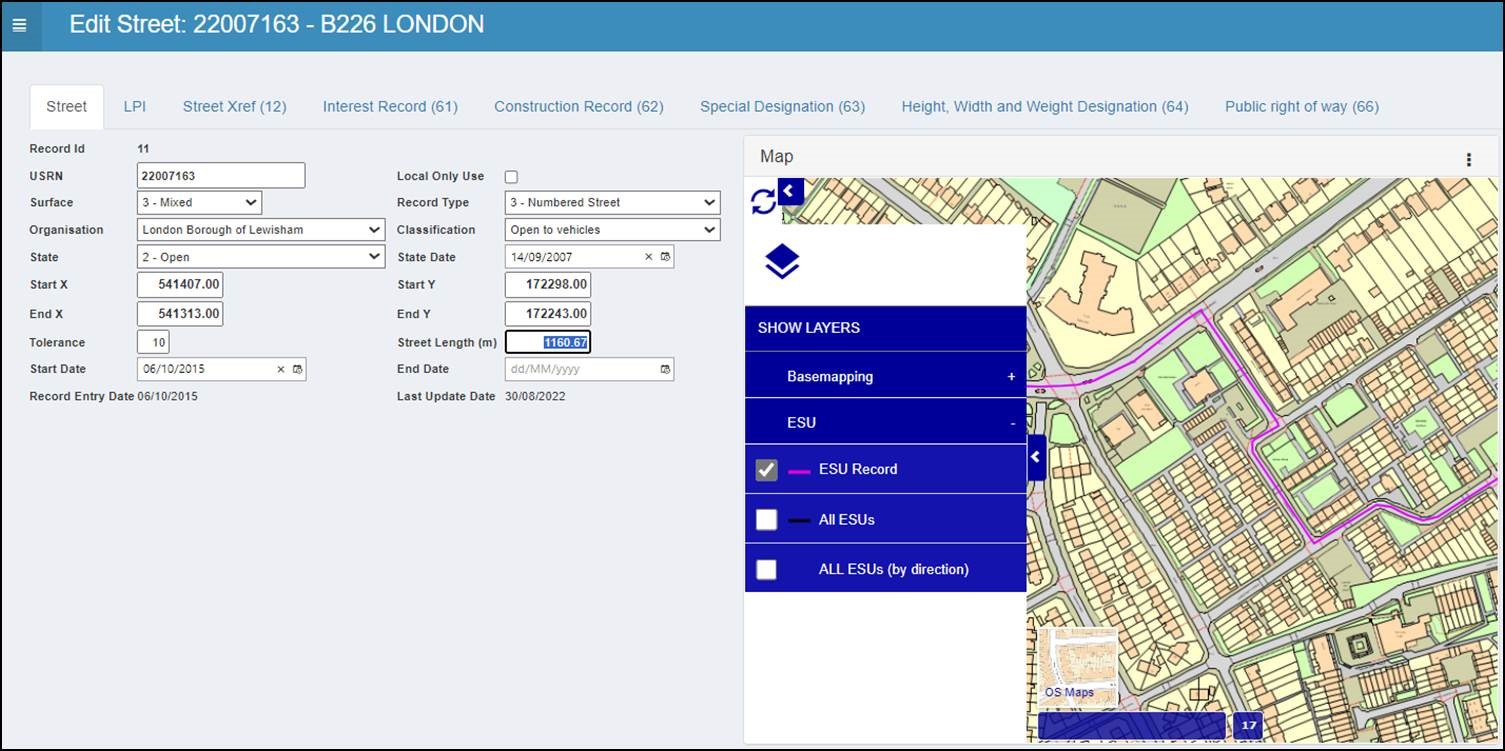

If we now view the Numbered Street edit page, we can see that the ESU has also been removed from the Street geometry in the map, and the length of the Numbered Street has automatically been updated from 1216.44 to 1160.67.
