AutoCAD Electrical 2018 – Customising Reports

By Miles Nicholson

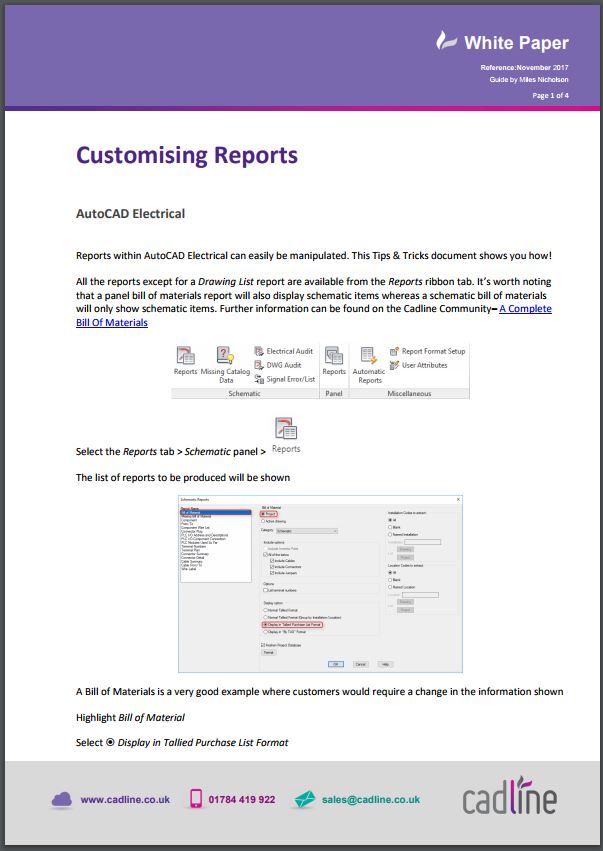

Reports within AutoCAD Electrical can easily be manipulated. This Tips & Tricks document shows you how!

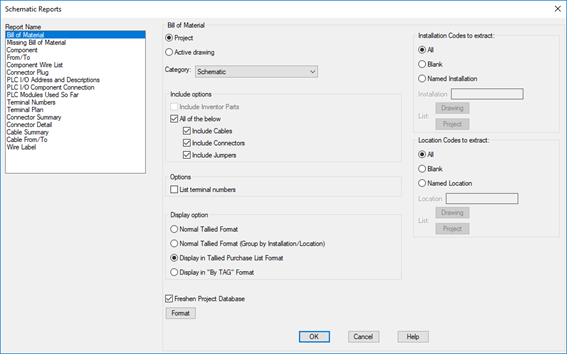

All the reports except for a Drawing List report are available from the Reports ribbon tab. It’s worth noting that a panel bill of materials report will also display schematic items whereas a schematic bill of materials will only show schematic items. Further information can be found on the Cadline Community– A Complete Bill Of Materials
