elecworks 2018 - Adding Accessories In The Terminal Strip Editor

By Miles Nicholson

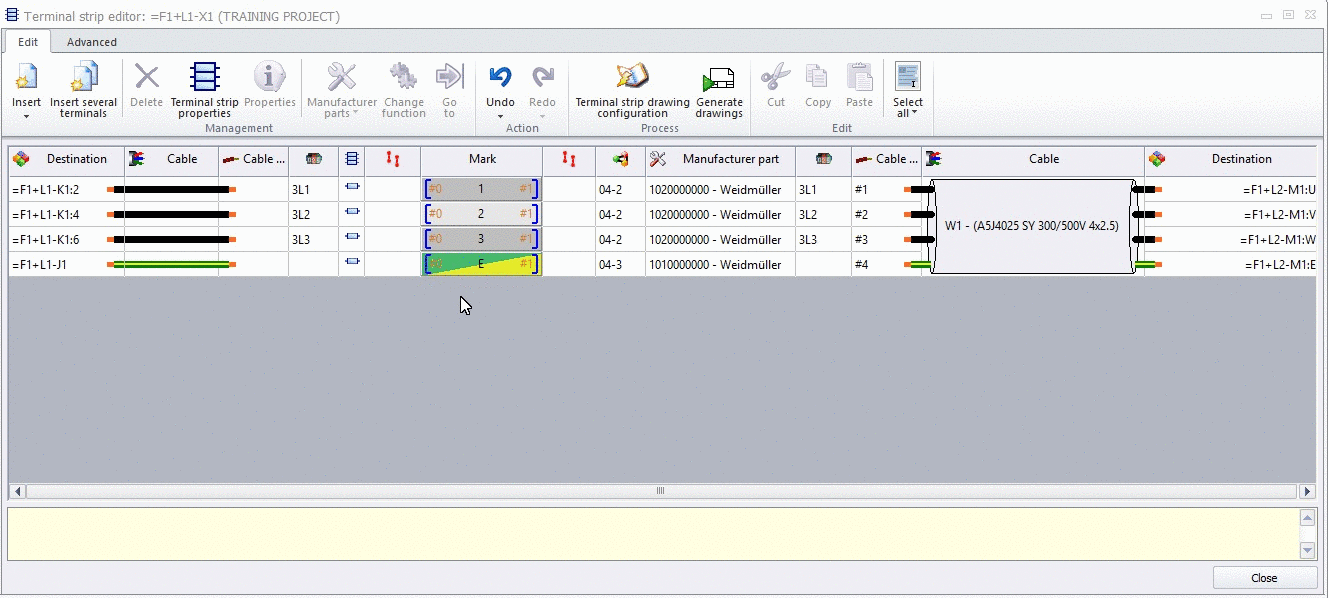

You can add accessories in the terminal editor such as end plates, partition plates, end stops and bridging bars or jumpers as well as adding spare terminals. These are displayed in the bill of materials and where appropriate within the terminal strip drawings. This tips & tricks shows you how to add accessories such as partition plates, end plates or end stops.
