Does Revit have an orthogonal drawing mode like AutoCAD?

Answer:

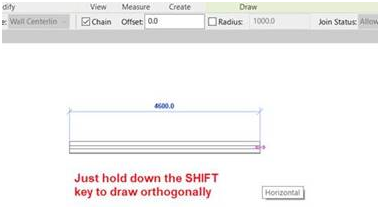

Yes, simply hold down the SHIFT key when drawing and Revit will draw grid lines, reference planes and walls etc. in an orthogonal manner. To stop drawing orthogonally simply release the SHIFT key.
