QGIS – Extract X & Y Coordinates

By David Crowther

Question:

How do you extract X and Y coordinates in QGIS?

Answer:

QGIS has a tool that can do this for you!

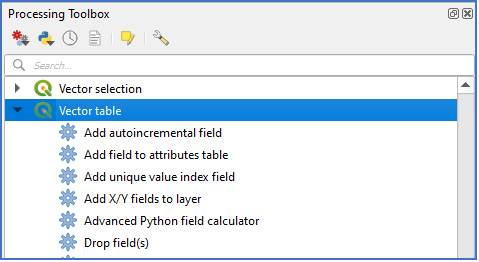

From the Processing menu choose > Toolbox > and open the Vector Table section.

Choose the Add X/Y fields to layer menu option.

The Add X/Y fields to layer Tool will open.

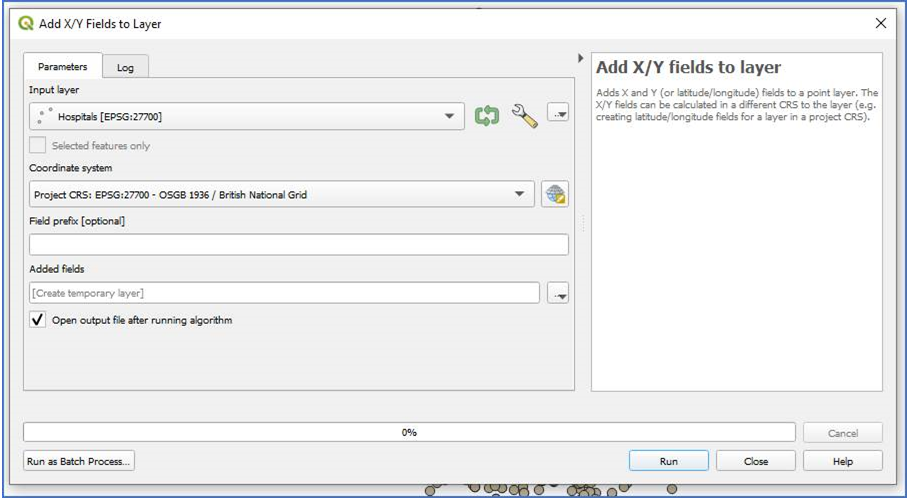

We will use the following settings:

• In the Input Layer choose our Points Layer e.g. Hospitals.
• For the Coordinate system, we will choose BNG 27700.

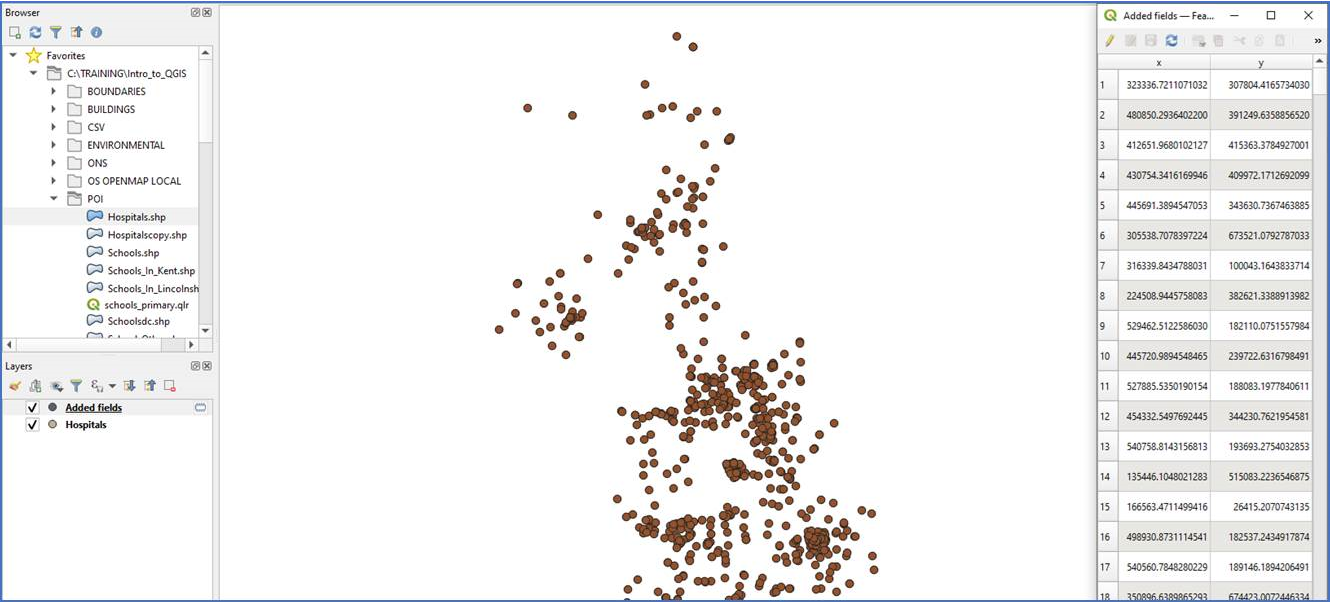

If you now Run the Add X/Y fields Tool, the output will be a new Temporary Layer containing the Points/Records from the original data, with the X and Y field now appended onto the end. When viewed in the Attribute Table we can see the Easting (x) and Northing (n) values have now been extracted for each point.
