Revit Tip: Change Temporary Dimension Height

by Dennis Collin

Fig. From this,                                                                       … to this!

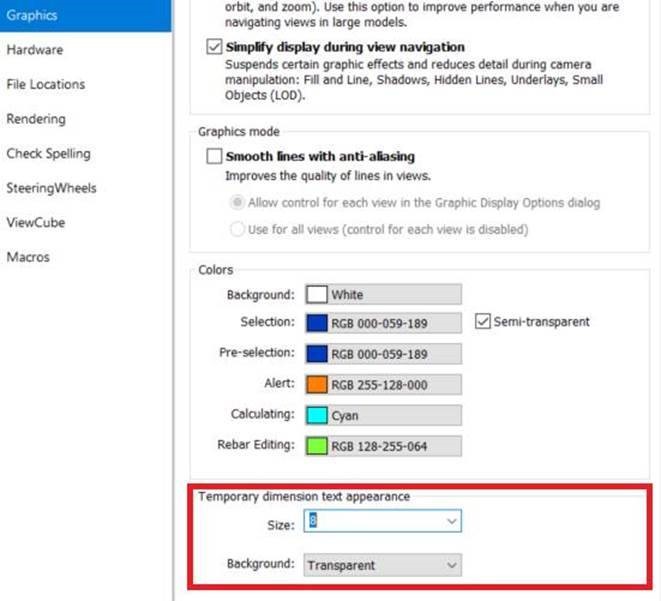

Temporary dimensions are very useful to control relative positions of elements within a project. However sometimes the characters can be a little too small to read on screen. This can be addressed by accessing the Options dialogue, select the graphics panel and adjust the dimension text height and transparency options highlighted.
