Revit Tip: Adjust beam connections with beam join tool

by Dennis Collin

When working within a structural model, beams do not always connect in a desired manner. However, beam join junction behaviour can be toggled using the beam join tool with arrow nodes indicating join priority.

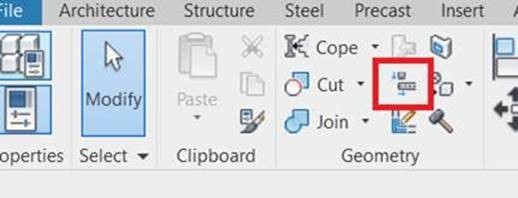

Fig. Beam Join command highlighted

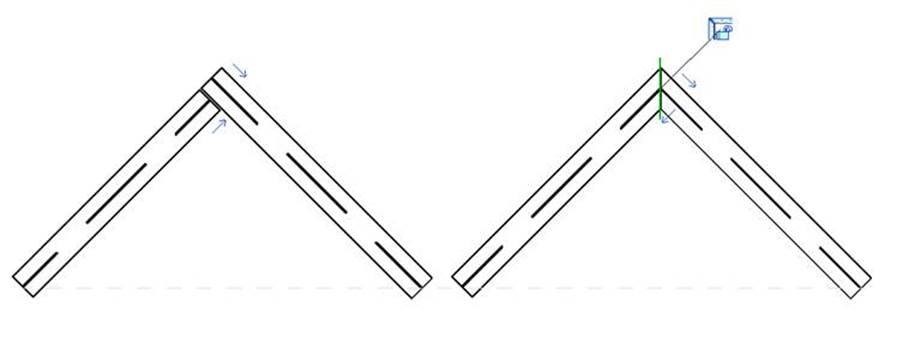

Fig. Once active toggle the priority of beam joins or apply a mitre joint as appropriate.
