Revit 2022 – New feature – Tags: Ability to tag multiple elements

by Dennis Collin

A much-requested feature for Revit is the ability to set a tag to multiple elements where the object may share a common type parameter. In the image below a curtain wall panel has a type mark parameter labelled by a singular tag family.

Fig. Tags can now reference multiple components! This example referencing the ‘Type Mark’parameter

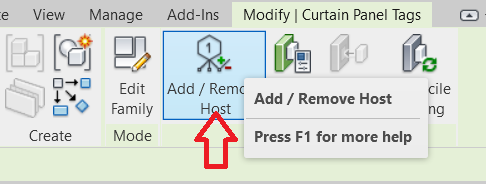

To enable this option after placing the initial tag element look for the add/remove host option in the tag edit ribbon.

Fig. New Subcategory in Visibility Graphics

Should a tag reference multiple objects with different values then a ‘varies’ indicator will display.

Fig. For labelling curtain panels with different unique ‘Mark’ values.
