Revit 2022 – New feature – Preserve Call Out Views

By Dennis Collin

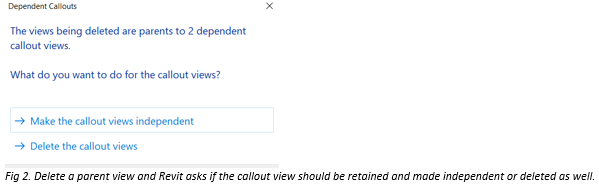

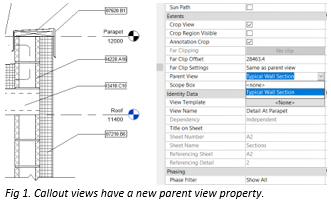

When detailing within projects typically a callout is placed within a parent view. There is now a new control where the parent view can be set to ‘none’ thereby creating an independent callout view. Independent callout views are retained when the parent view is deleted. Should the property not be set users will be asked whether they would like to make callout views independent.

The visibility of a callout view is controlled by setting the "Show in" parameter of the callout view. Set a callout view to be visible in the parent view only, or in intersecting views. Callouts without a parent view are visible in intersecting views.
