AutoCAD 2023 - Layouts and Views – Part 4

By John Flanagan

How To:  Create a Layout from a Template

1. In the Layout tab>Layout panel, expand New and click Form Template. You can also right-click on a layout tab and select From Template…
2. In the Select Template From File dialogue box, locate the template file you want to use and click Open.

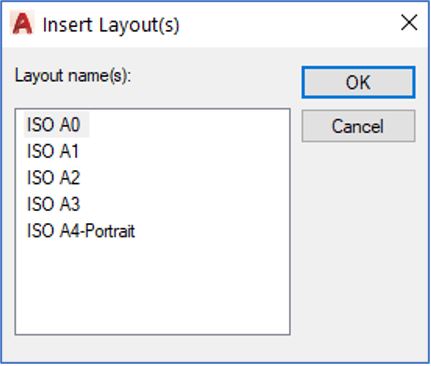

3. In the Insert Layout(S) dialogue box, select the layout you want to use, as shown.
4. The new layout is added to the end of the row of tabs.

How To:  Create a New Layout

1. Click + at the end of the Layouts tabs to create a new layout. It creates a new layout with the name Layout 1 or the next available layout number.
2. Rename the layout (double-click or right-click and select Rename).
