Revit 2025 - Create Sharper 3D Views

by John Flanagan

Introduction: Use Anti-Aliasing

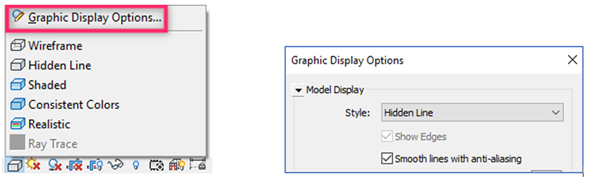

Aliasing occurs when a line looks pixelated (jagged). To activate anti-aliasing, go to Graphic Display Options on the view control bar in the view and check “Smooth Lines With Anti-Aliasing”.

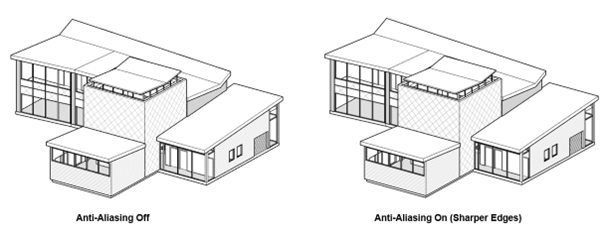

The image of the Art Gallery model on the right appears sharper. You will see this more clearly on your own screen when you apply Anti-Aliasing to your own building models. For a dramatic visual effect, try applying Anti-Aliasing in Hidden Line mode with Ambient Shadows turned on. The Ambient Shadows check box is located in the Graphic Display Options dialogue box.
