MEPworx Wiring – Tembreak 2 MCCBs added to Terasaki  CPD DBs

By David Wren

Updated versions of the Terasaki CPD DBs are available with the recent release of MEPworx 2026;
Terasaki ASNZ 2025_18_Amd3.DBZ and Terasaki Europe 2025_18_Amd3.DBZ.

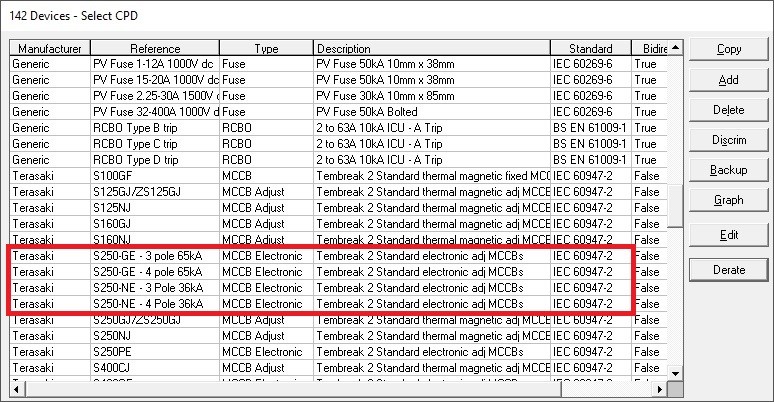

Added breakers are the Tembreak 2 Standard electronic MCCBs,
S250-NE 40A - 250A, 3 & 4 pole 36kA
S250-GE 40A - 250A, 3 & 4 pole 65kA

The previous versions of the Terasaki CPD DBs;
Terasaki ASNZ 2015_18_Amd3.DBZ and Terasaki Europe 2015_18_Amd3.DBZ,
have been relocated to the, DB\CPD\Legacy sub-folder.
