Revit 2022: Import FormIt in CAD Format

By John Flanagan

Import AXM files with preserved materials, layers and group definitions.

Introduction

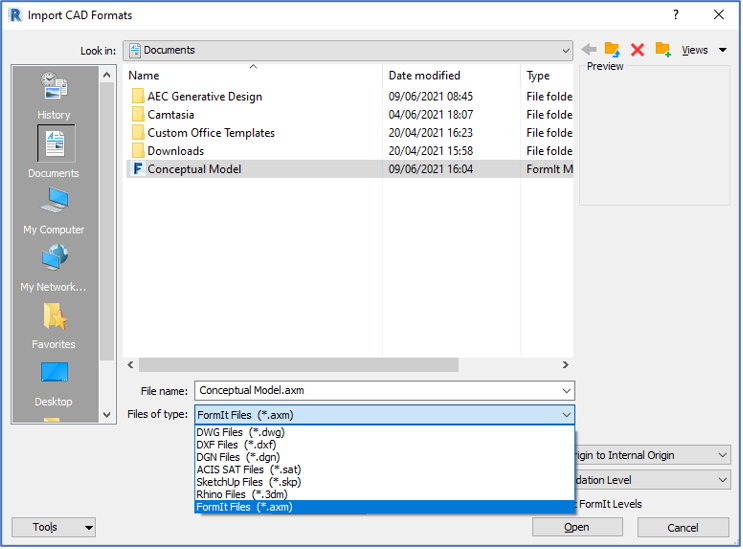

Revit 2022 displays FormIt as a supported file format in the import CAD options.

Import FormIt AXM File

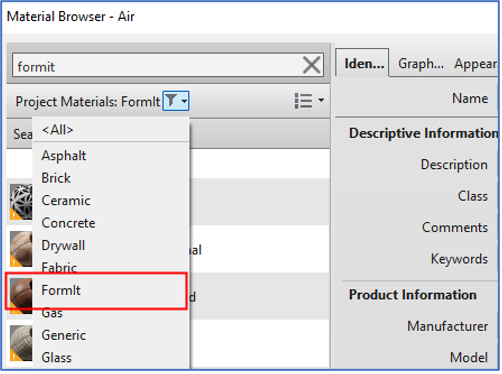

The material properties from FormIt are transferred to Revit and grouped under a new filter category in the materials library.

Material Library

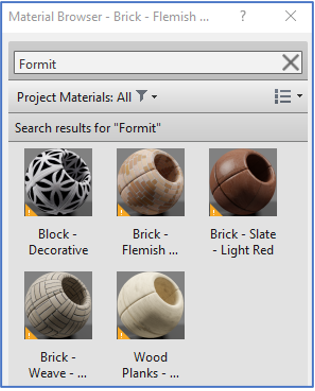

You can also access the FormIt materials in the Paint Tool dialogue box.

Paint Tool Dialogue Box

The introductory illustration shows house walls painted with decorative block and brick weave. Both materials came in with the imported FormIt AXM file. FormIt layers are preserved and controlled via Visibility Graphics.
