Revit 2022.1 - Update Available

By Dennis Collin

Autodesk has just released an update for Revit. This update applies several fixes to the core product. Key enhancements include:

• The addition of a lock option to the align tool that allows automatic locking of all aligned elements.
• The ability to select multiple families within the Load Family function.

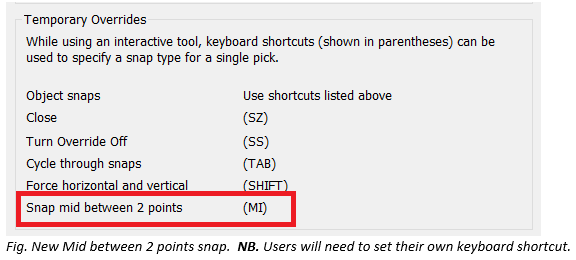

• The addition of a Midway between two points snap when drawing or placing elements.
• The ability to duplicate sheets.

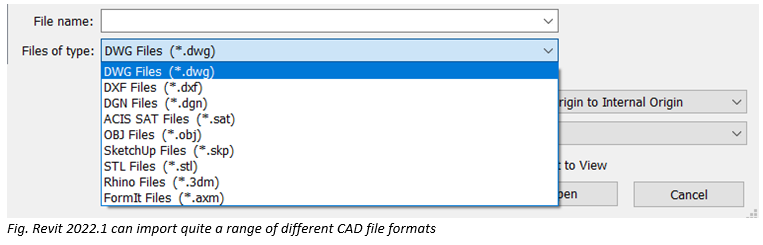

Dynamo has been upgraded to v2.12 (which includes the ability to resize watch nodes). Improved Input/Output functions with the ability to import and export IFC files of any size and support for Rhino 7 and Sketchup 2021 files. It is also now possible to import OBJ and STL files via Import CAD.

There is also a major improvement with system performance when working with large complex models, with many open views.

For a complete list of features and enhancements go here:

For the improvements contained in Dynamo 2.12 go here:

Once the update has been applied, the additional features should be accessible and Revit’s version should display as the image below.
