Revit 2022 - Double Fill Patterns

By John Flanagan

DOUBLE PATTERN GUIDE

Always use the foreground pattern for lines representing a material and the background pattern for solid fills. If you set the solid fill in the foreground, you will override the material pattern information and lose graphical components.

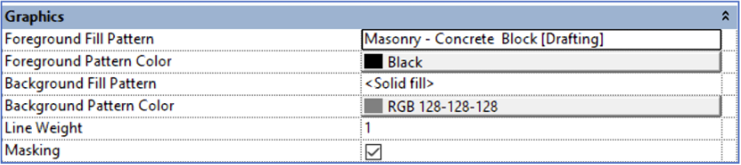

Below, we use this technique to create a masonry cut pattern with a grey fill.
