Revit 2022 - Viewport Title Length

By Justin Doughty

When placing views on sheets in Revit, you may find the viewport titles may not always fit onto one line and start to overlap. Below is a quick guide to make these longer.

First pick the Viewport title, then go to Edit Type, here look at the Title for the family used.

Now go to the Project Browser>Families>Annotation Symbols and find that family:

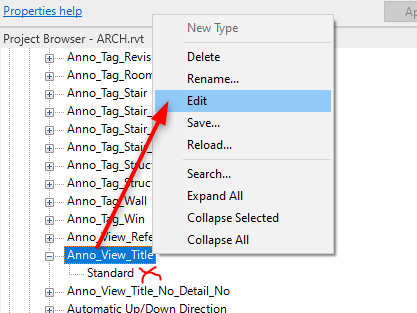

Right Click Anno_View_Title (the family you have named) and Edit:

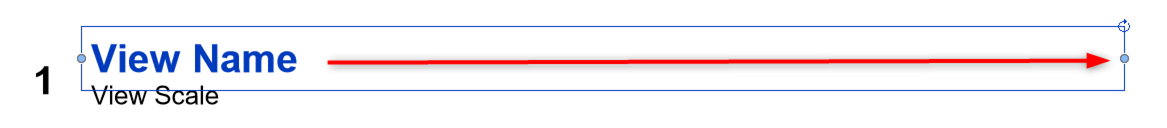

Now in the family, just stretch the label box to make it longer:
