What improved things do we see in Revit 2023? – Additional View Filter Options!

By Dennis Collin

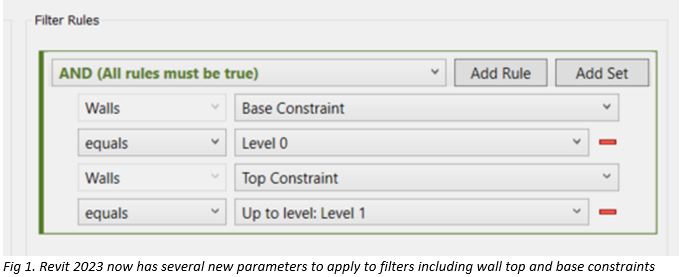

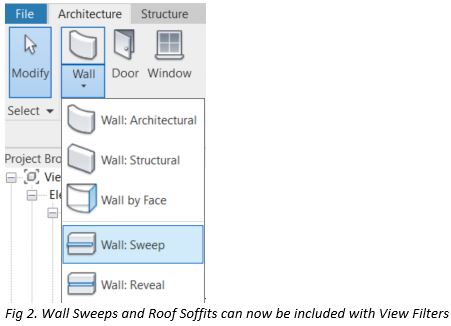

Revit 2023 has introduced some additional view filter options. Some additional parameters that can be filtered include Walls, Base and Top Constraints and Top and Base Offsets. Also, it is now possible to select Roof Soffits and Wall Sweep subcategories for filters.

N.B. For Filters to work for Wall Sweeps, the sweeps need to be formed from the Wall Sweep system family type (Wall:Sweep). Sweeps defined within the vertical structure of the wall type will not be included.
