Revit - Elevation Parameters for Schedules in Revit MEP

By Garry Stockton

Tag and Schedule Elevation Parameters for MEP Elements

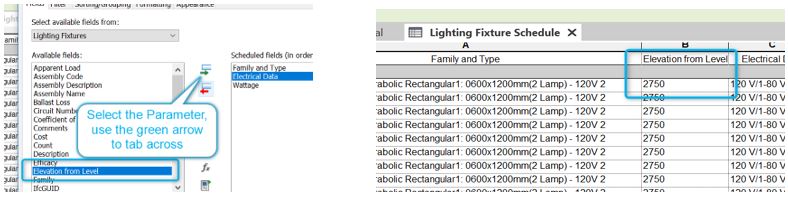

This underused feature that was introduced back in Revit 2020 allows you to schedule the Elevation Parameters. This can be used for any Element for a wide variety of MEP families and used in tags and schedules. For example, you can create a schedule that shows the elevation from level for the various electrical/plumbing or mechanical fixtures in a project. See below for just some of the families:

• Mechanical Equipment
• Plumbing Fixture
• Lighting Fixture
• Lighting Device
• Sprinklers
• Electrical Fixtures
• Electrical Equipment
• Data Device
• Communication Device
• Fire Alarm Device
• Nurse Call Device
• Security Device
• Telephone Device
• Specialty Equipment
