Revit 2024.1 – Split with Gap on Structural Elements

Marketing
Marketing
  • Updated

By Dennis Collin

Revit 2024.1 – Split with Gap on Structural Elements - 1.png

Revit 2024.1 brings many improvements, one that will prove useful for structural models is the new ability to split structural elements with gaps! Using the standard Split with Gap modify function, users can split columns beams and bracing elements.

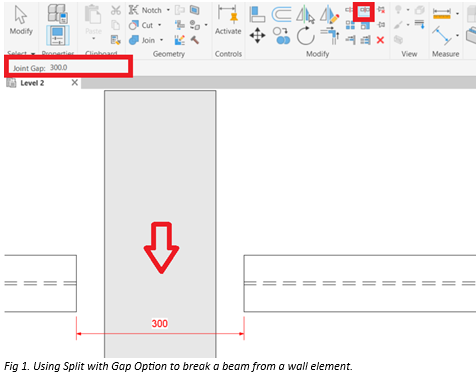

Revit 2024.1 – Split with Gap on Structural Elements - 2.png

This function should make it easier when modelling structural details within Callout views.
