Revit 2024 - Adding Views to Sheets

By John Flanagan

Adding Views to Sheets

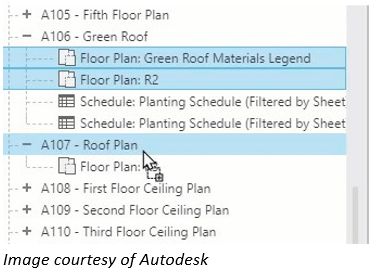

You can now drag multiple views or schedules from the Project Browser to place onto a sheet.

The Select View now allows for the selection of multiple items. Use the new search along the top of the dialog to quickly find views.

Views that are placed on sheets can now be changed for other views. Just select the view on the sheet and choose a different one from the list on the ribbon menu. There is an option to align the view to the origin or centre of the current view to help with different scales and crop regions.

This can be combined with the “Duplicate Sheet” feature from 2022 to speed up creating drawings for multiple levels or repetitive drawings such as details or room data sheets.
