MEPworx Wiring – Dorman Smith YB1 added to CPD DB

By David Wren

An updated version of the Dorman Smith CPD DB is now available on the ARKANCE UK Cloud - Downloads web page at:
cloud.cadline.co.uk/cadlinecloud/forms/Downloads.aspx

Dorman Smith 2026_Amd3.DBZ.


The updates:

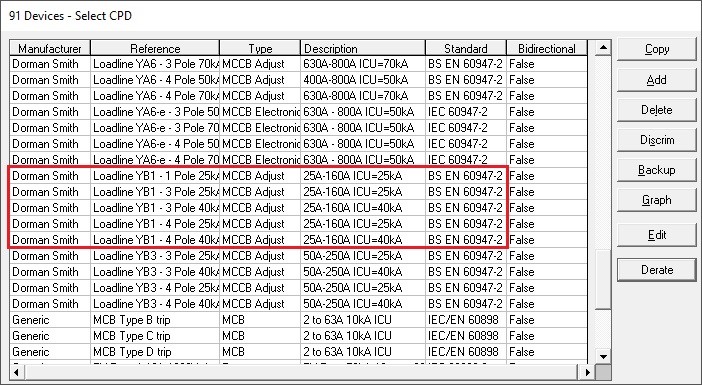

Added breakers are the Loadline YB1 TM MCCBs,
25kA - 1 pole 16A - 125A
25kA - 3 & 4 Pole 25A - 160A
40kA - 3 & 4 Pole 25A - 160A (NOTE. 32A 3&4 pole MCCB is rated at 30kA)
