elecworks – Changing the Attribute Text Height on Multiple Objects

By Miles Nicholson

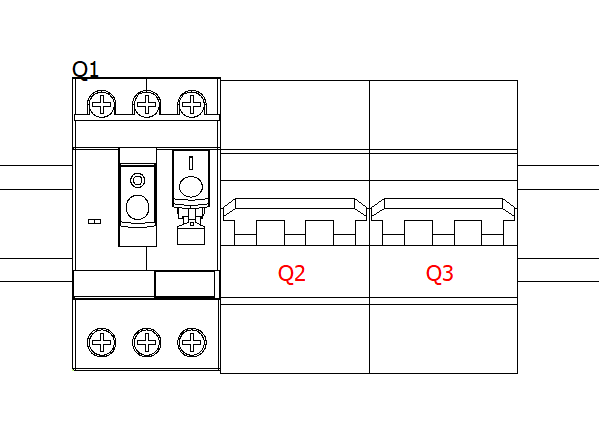

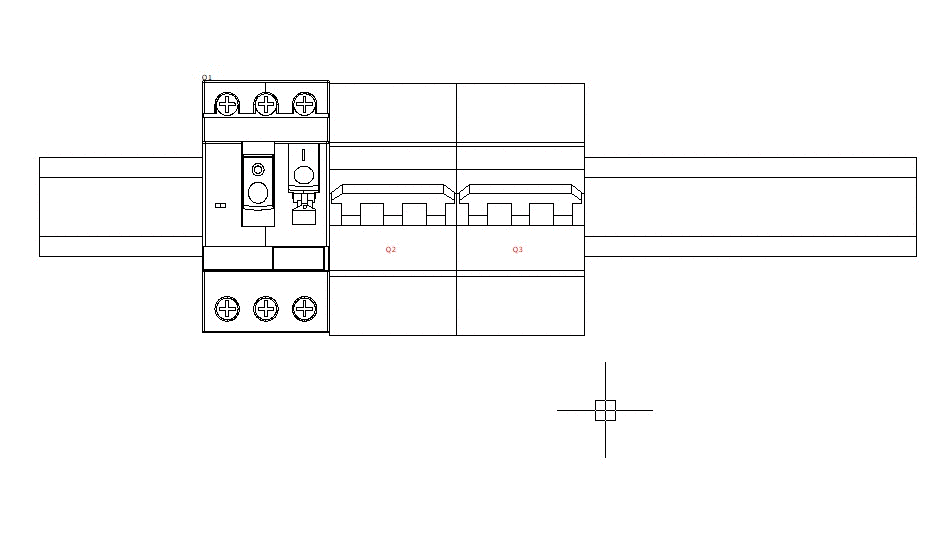

Information, especially in the cabinet layout, can look small when you have scaled your cabinet layout to fit the title frame and therefore scaled the attribute information.

Individually you can right click over a component or symbol and select Attributes > Edit attributes

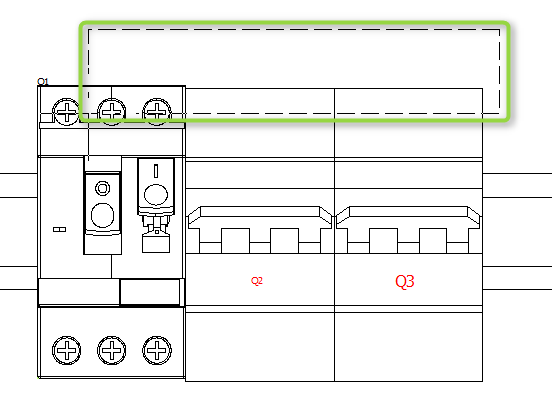

 and alter the height of the respective attribute you wish to changeHowever, you can make the same change to multiple objects by selecting a crossing window of the objects first

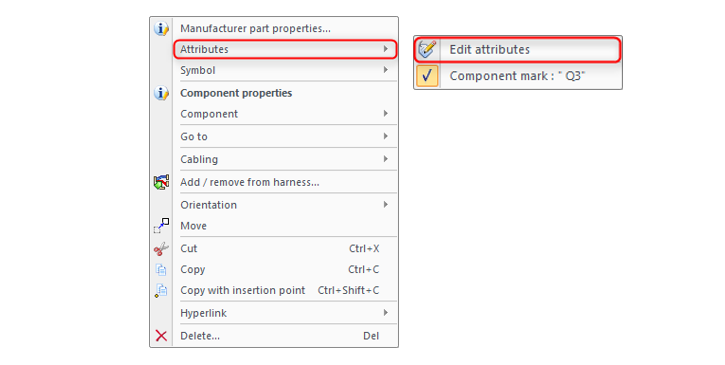

Then right click over one of the objects > Attributes > Edit attribute

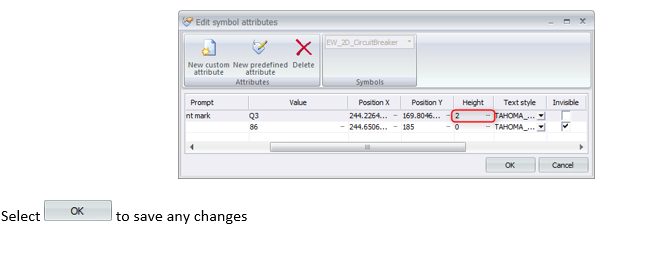

Change the text height and the change will be performed on all the objects selected
