Inventor 2018 - Linking Inventor With An Existing Electromechanical Link File Created In AutoCAD Electrical

Marketing
Marketing
  • Updated

By Miles Nicholson

Select Electromechanical ribbon tab

Select 19.png

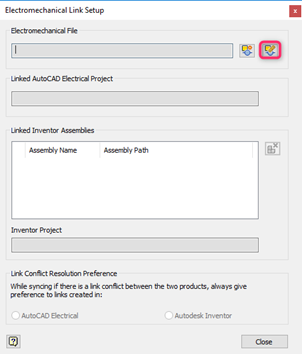

The Electromechanical Link Setup dialogue will be displayed:


Select 21.png Link to an electromechanical file

Browse 22.png to the *.emx file and select 23.png

Select 24.png
