AutoCAD Electrical 2022 – What’s New In the Cadline Localiser 2022

By Miles Nicholson

Cadline are proud to have released the NEW Cadline Localiser 2022. The add on software coincides with the latest version of AutoCAD® Electrical and is suitable for AutoCAD® Electrical 2020, 2021 and 2022. The system requirements are as AutoCAD® Electrical.

New Features List:

New command to refresh/update the project scratch database. Available from the extras ribbon tab > Wires/Wire Numbers panel. This is especially useful when utilising the KKS numbering system.

• Additional Manufacturers Part information

Several thousand new parts have been added to the following manufacturers catalogues. These can be appended easily into your existing AutoCAD® Electrical default_cat database.

• DRAKA UK
• iSMA
• SCHNEIDER ELECTRIC
• WEG

• New iSMA PLC database

These new PLC’s can be appended easily into your existing AutoCAD® Electrical ace_plc database and enables users to select iSMA PLC’s from the Parametric PLC command.

• Updated CUI

The Refresh Data command has been added to the KKS dropdown list of commands.

• Updated ARC (architectural library)

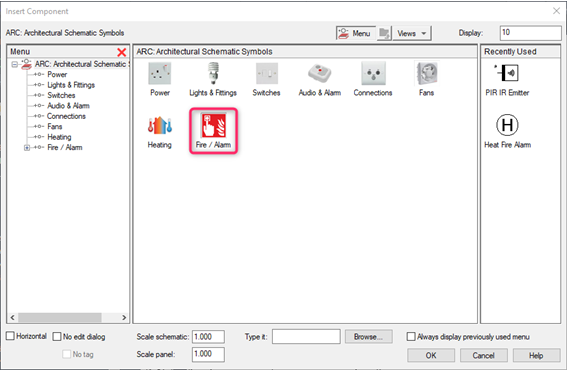

A new sub-menu has been added with Fire / Alarm equipment to the ARC (architectural library) with sub-menus for Fire Alarm Systems, Alarm Systems and Household Detectors:

This further enhances the utilisation of AutoCAD Electrical within the fire / alarm industry sector.
