AutoCAD Electrical 2022 – Whats New in the Cadline Localiser 2022.1 Update

By Miles Nicholson

The latest iteration of the Cadline Localiser, 2022.1, has brought about the following new features within a mid-cycle release further enhancing the functionality and the benefit for customers utilising Cadline’s specialised AutoCAD® Electrical add-in.

2022.1 New Features:

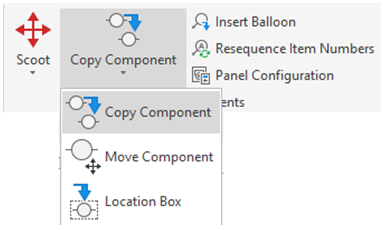

1. The command Location Box has been added to the Pneu/Hyd/PID ribbon > Edit Components pane
   Edit Components pane reconfigured to provide a better user experience.

2. A new command Angles To Dots has been added to the eXtras ribbon > Wires/Wire Numbers pane.

   When selected, the command will search the active drawing for wire angles and automatically replace with wire dots.
3. A new command ImportUCS has been added to a new pane Coordinates Panel on the extras ribbon.

   When selected, you can browse to an existing drawing to import the UCS settings.
4. DIN Rail now has a maximum length of 2000mm and set increments of 5mm. Drill holes are created enabling you to produce a hole chart within AutoCAD® Mechanical.
5. Trunking now has a maximum length of 2000mm and set increments of 5mm. Drill holes are created enabling you to produce a hole chart within AutoCAD® Mechanical. Drill holes are dynamic dependent upon the width of the trunking and automatically create 2 rows of drill holes once trunking is above a specific width.
6. G-Rail now has a maximum length of 2000mm and set increments of 5mm.
