AutoCAD Electrical - Sync Failed

By Florentina Stirbu

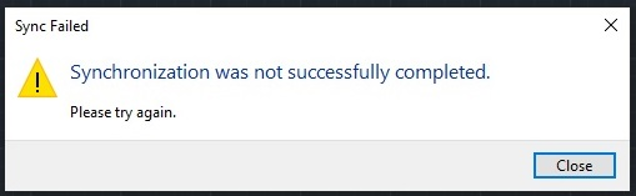

On machines where multiple versions of AutoCAD Electrical are installed along with Autodesk Inventor, the electro-mechanical exchange process can fail – the following message will be displayed each time a project is opened:

The warning message can be dismissed by clicking the Close button and usually there are no other issues when continuing to use AutoCAD Electrical.

To prevent this from being displayed, change the value of the AEEMXDATAUPDATEMODE system variable to 1.
