AutoCAD Electrical 2023 – What’s New in the AutoCAD Electrical Cadline Localiser 2023

By Miles Nicholson

Following the release of AutoCAD Electrical 2023, we are pleased to announce the release of the Cadline Localiser 2023 which will operate with AutoCAD Electrical 2023, 2022 & 2021. Adding to the already long list of comprehensive functionality and content, the following features will be included in the new release. Further information on the benefits of the Cadline Localiser can be found in the overview:

• New Cadline Community icon
• New Cadline Support Icon

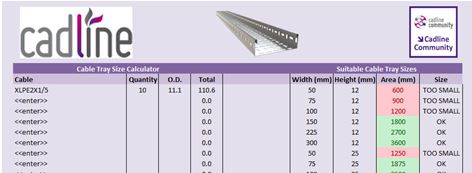

• Wirefill.xls:          Cable tray tab added with the ability to calculate cable tray sizing requirements:
• WIELAND catalogue database added.
• WIELAND footprint database added.
• WEIDMULLER footprint DWG’s associated to accessory components enabling them to be drawn automatically to size within the terminal editor.
• WEIDMULLER ACCESSORIES database updated to have footprint DWG’s associated.
• Phoenix Contact catalogue & footprint databases: additional parts and footprints added.
• WD library updated.

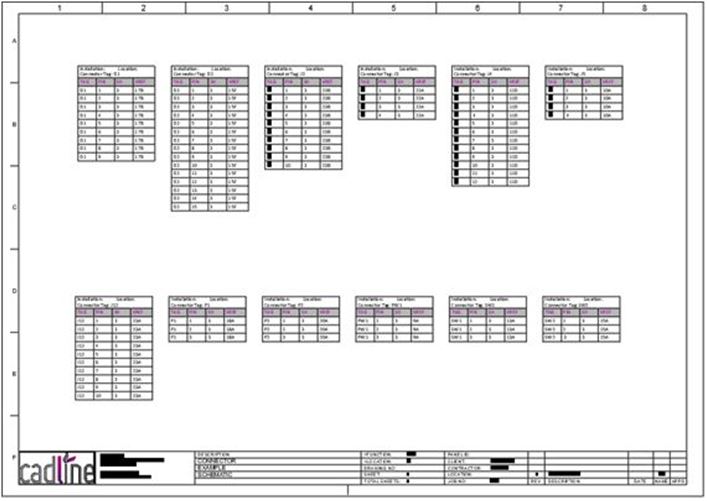

  • Connector tables added up to 50 pins to WD library.

• Phoenix Contact additional footprints added to Panel_mm library.
• Weidmuller additional footprints added to Panel_mm library.
• Wieland footprints added to Panel_mm library.
